Description

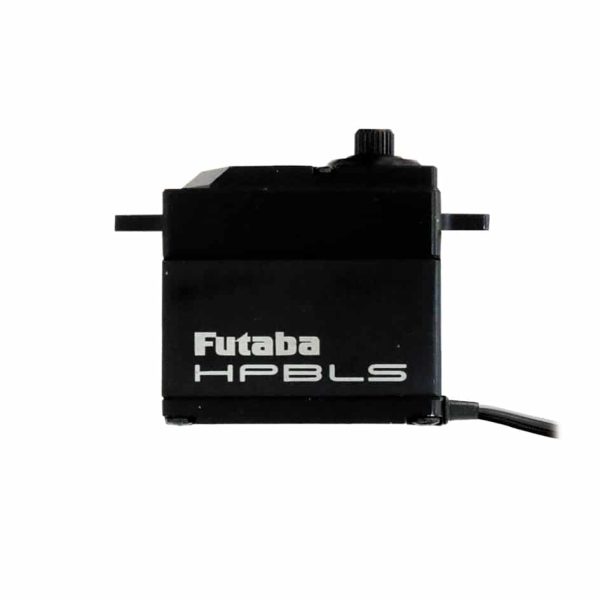

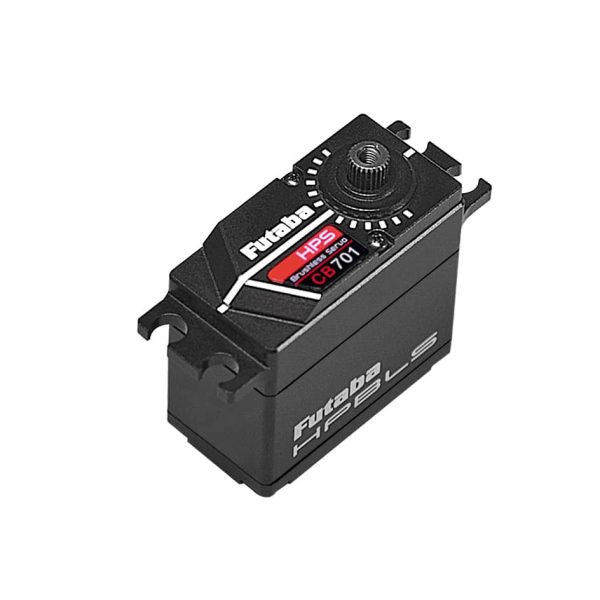

HPS-CB701– S.Bus2 High-Voltage Standard Surface Servo

High Performance Servo with Brushless Motor (01102359-3)

FEATURES:
– Suitable for RC cars 1/10 scale on/off road and 1/8 scale on/off road.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Supports SR mode with T4PM/P, T7PX/R, T10PX.
– Supports UR mode with T10PX.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom: Aluminum Case

SPEED:
0.09 sec/60°at 6.0V
0.075 sec/60° at 7.4V

TORQUE:
42.0 kgf/cm at 6.0V
583.3 ozf/in at 6.0V
49.0 kgf/cm at 7.4V
680.5 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 37.8 mm
1.59 in x 0.83 in x 1.49 in

WEIGHT:
75 g
2.65 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
