Description

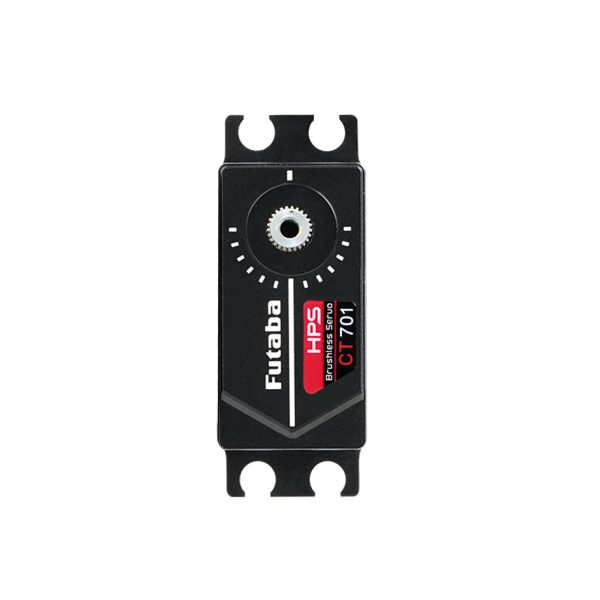

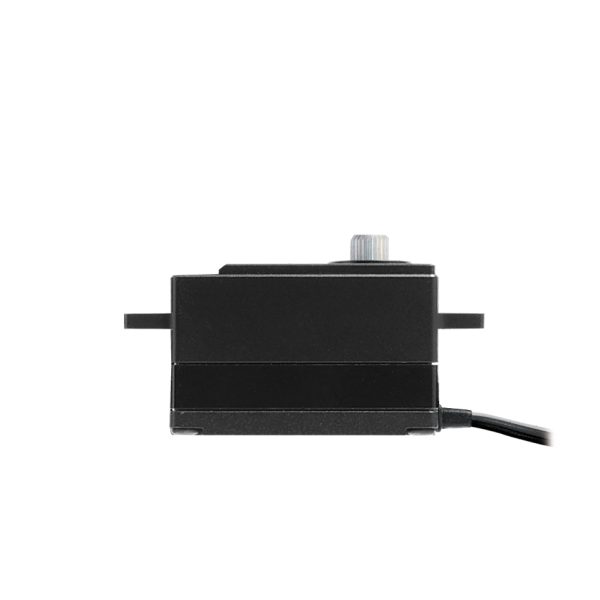

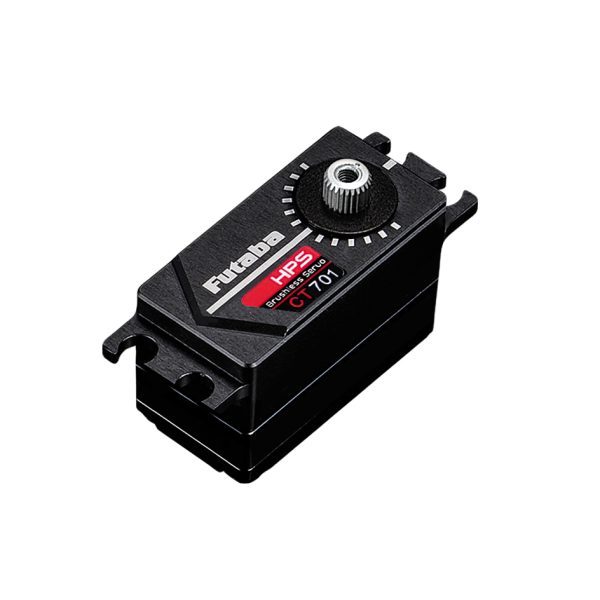

HPS-CT701– S.Bus2 High-Voltage Low-Profile Surface Servo

High Performance Servo with Brushless Motor (01102360-3)

FEATURES:
– Suitable for RC cars 1/10 scale on/off road and drifting.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Supports SR mode with T4PM/T7PX/T10PX
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom: Aluminum Case

Speed：0.07sec/60°(7.4V) ／ 0.08sec/60°(6.0V)

Torque：30.0kgf・cm(7.4V) ／ 23.0kgf・cm(6.0V)

416.6ozf・in(7.4V) ／ 319.4ozf・in(6.0V)

Dimensions/Weight：40.5×21.0×26.2mm/54g (1.59×0.83×1.03in)

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
