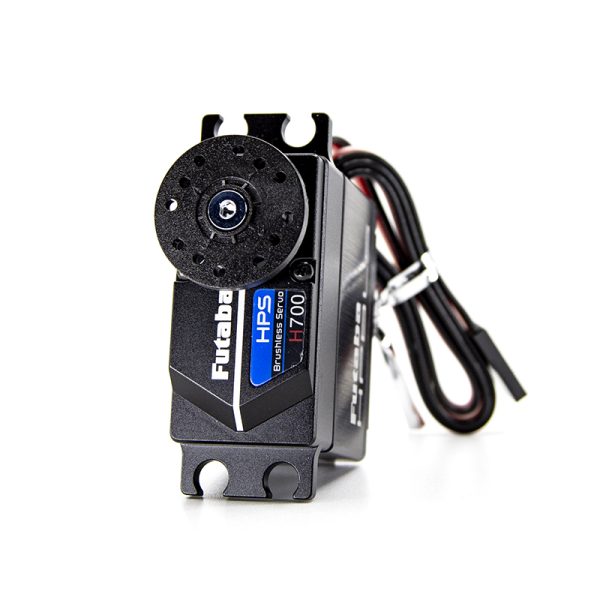

HPS-H700 (No BEC, S.Bus2/Brushless)

$199.99

-

S.Bus2


In stock

SKU: 01102312-3 Categories: , Tags: , ,

Description


HPS-H700– S.Bus2 High-Voltage Standard Helicopter Servo


High Performance Servo with Brushless Motor (Neutral Pulse Width: Default 1520μs, optional 760μs) (01102312-3)


FEATURES:
– Suitable for all purpose RC helicopters.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom: Aluminum Case
– 2S LiPo Suitable

SPEED:
0.075 sec/60°at 6.6V
0.07 sec/60° at 7.4V

TORQUE:
41.0 kgf/cm at 6.6V
569.4 ozf/in at 6.6V
44.0 kgf/cm at 7.4V
511.1 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 37.8 mm
1.59 in x 0.83 in x 1.49 in

WEIGHT:
76 g
2.68 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE




Additional information

Weight 81 oz
Dimensions 1.2 × .5 × 1.2 in
Product

Servo

Hobby

Helicopter

Features

S.Bus, S.Bus2, Brushless, HV, Metal Case

Servo Size

Standard
