Description

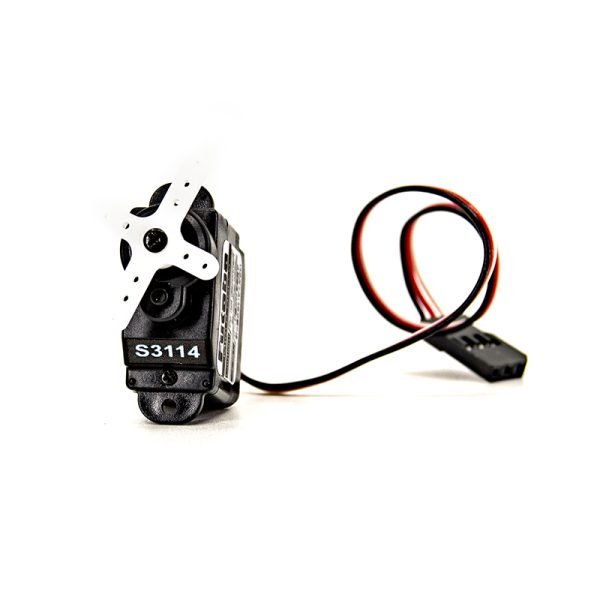

S3114– Analog Micro Airplane Servo
For Small Electric Powered Models (01102219-3)
SPEED:
0.10 sec/60°at 4.8V
0.09 sec/60°at 6.0V
TORQUE:
20.8 oz/in at 4.8V
23.5oz/in at 6.0V
SIZE:
0.86 in x 0.43 in x 0.78 in
WEIGHT:
0.27 oz
The S3114 servo is a micro servo for small electronic powered models. Pay special attention to the following points:
- Do not use with gas powered engine models or other models that require high torque.
- Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
- Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
- Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
