S3777SV (S.Bus2)

$52.99

-

S.Bus2


SKU: 01102155-3 Categories: , , Tags: , ,

This product has been discontinued.

Description

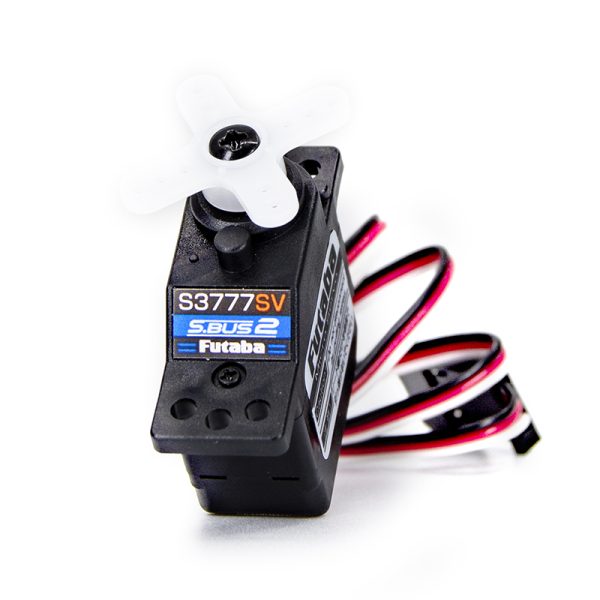

S3777SV– S.Bus2 High-Voltage Micro Air Servo


For Small Electric Powered Models (01102155-3)


SPEED:
0.14 sec/60°at 6.0V
0.12 sec/60° at 7.4V

TORQUE:
2.2 kgf/cm at 6.0V
30.6 ozf/in at 6.0V
2.6 kgf/cm at 7.4V
36.1 ozf/in at 7.4V

SIZE:
21.8 mm x 11 mm x 21.9 mm
0.86 in x 0.43 in x 0.86 in

WEIGHT:
10 g
0.35 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.0-8.4V

The S3777SV servo is a micro servo for small electronic powered models. Pay special attention to the following points:

  • Do not use with gas powered engine models or other models that require high torque.
  • Using supply voltage higher than 6.0V~7.4V or applying high loads to the servo will shorten the life.
  • Always use the servo horn specifically designed for this micro servo. Futaba does not use conventional servo horns.
  • Do not expose the servo to dust and water.
