Description

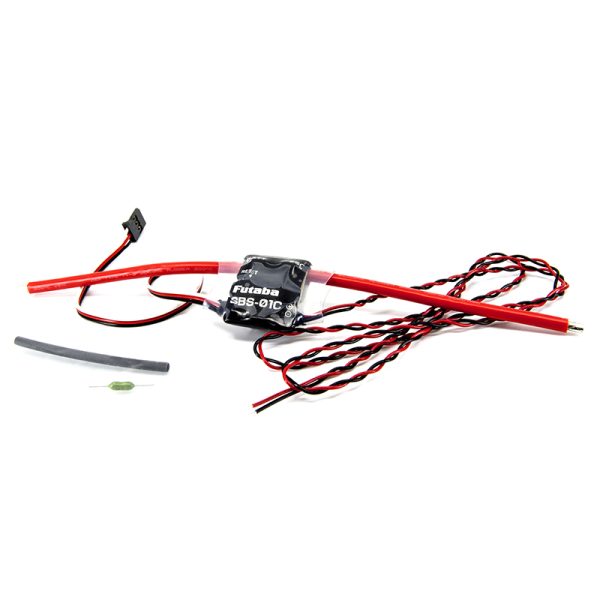

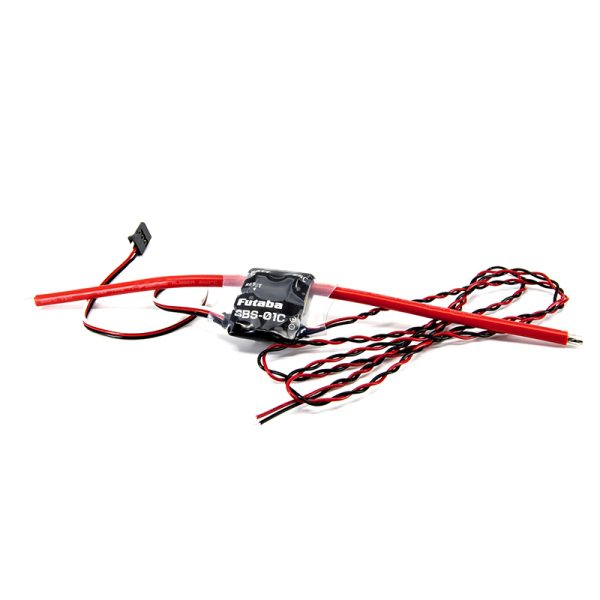

SBS-01C: Current/Capacity Monitoring Sensor
Current Sensor (UBB1164)
Works with the following Futaba Transmitters:
T18MZ (World Champion)
T18SZ
T18SZ (70th Anniversary)
T16IZ
T16SZ
T10PX
T7PX LE
T7PX
For additional compatible transmitters, please refer to the manual.
USE:
Electric-power system current and capacity monitoring sensor.
DETECTION ITEM:
CURRENT:
0A ~ 150A 12 Ga Silicone wire
VOLTAGE:
0V ~ 70V
CONSUMPTION CAPACITY:
0 mAh ~ 32767 mAh
WEIGHT:
23 g
0.81 oz
VOLTAGE:
DC 3.7 ~ 7.4V
CURRENT:
*0A ~ 70A
70a ~ 150A (within 10 seconds)
*Measurement is impossible below 1A
– Fuse (can mount in either direction) 1A @ 125VDC
