Description

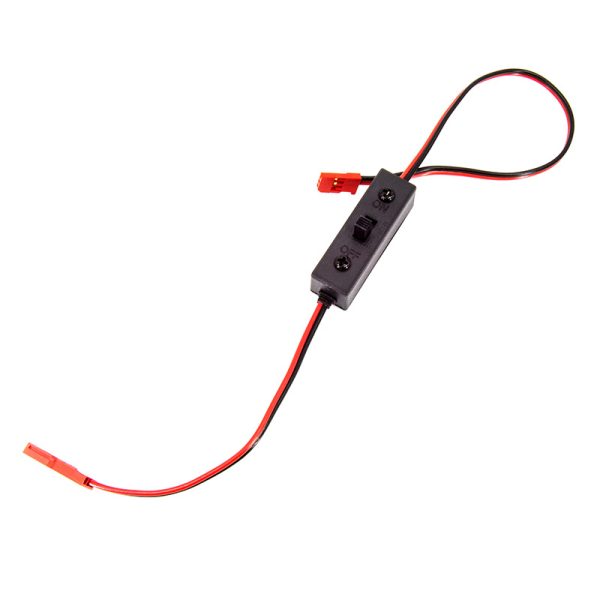

Heavy Duty Electronic Switch Harness – ESW-1J

With J-Connector (UBA0323)

DIMENSIONS (EXCLUDING PROTRUSIONS):
45.6 mm x 14.3 mm x 16.6 mm
1.80 in x 0.56 in x 0.65 in

POWER REQUIREMENT:
3.7 V ~ 7.4 V

VOLTAGE RANGE:
3.5 V ~ 8.4 V

ALLOWABLE CURRENT:
~ 5A

MAXIMUM ALLOWABLE CURRENT:
10A    30s

This switch connects a Futaba receiver to a battery and is turned on and off in an FET circuit. Compared to using a mechanical switch, it allows more current to be sent with less loss.
