Description

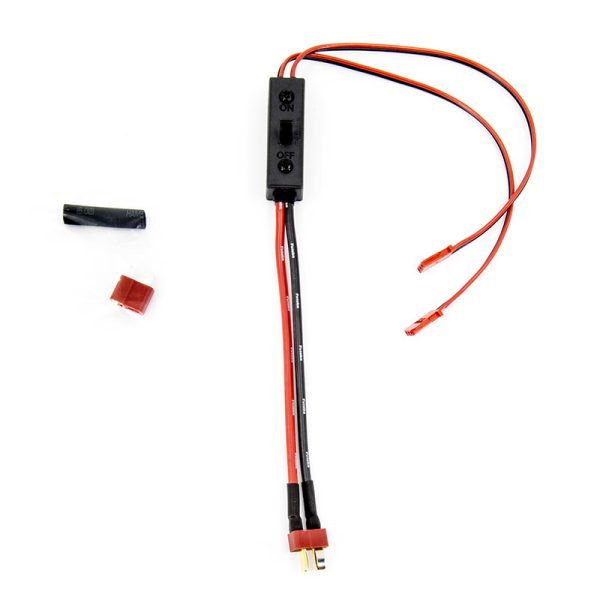

Heavy Duty High-Power Switch Harness – ESW-1D

Battery Side Deans Connector (UBA0324)

DIMENSIONS (EXCLUDING PROTRUSIONS):
45.6 mm x 14.3 mm x 16.6 mm
1.80 in x 0.56 in x 0.65 in

POWER REQUIREMENT:
3.7 V ~ 7.4 V

VOLTAGE RANGE:
3.5 V ~ 8.4 V

ALLOWABLE CURRENT:
~ 10A

MAXIMUM ALLOWABLE CURRENT:
15A    30s

This switch connects a Futaba receiver to a battery and is turned on and off in an FET circuit. Compared to using a mechanical switch, it allows more current to be sent with less loss.
