Description

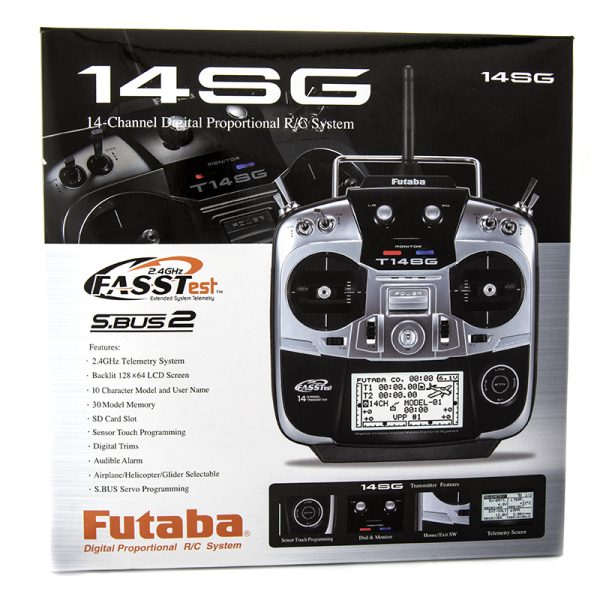

14SG Transmitter – 14-Channel Digital Proportional RC System
2-Stick, 14-Channel, FASSTest 2.4 GHz System (01004364-3) (01004365-3)
FEATURES
FASSTEST SYSTEM:
The 14SG transmitter has adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 14 channels (linear 12 channels + switch 2 channels) 2.4 GHz dedicated system. Through the FASSTest system, this radio has telemetry capabilities.
S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
MODEL TYPES:
Six swash types are available for helicopters. Six types of main wings and three types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
DATA INPUT:
Large graphic LCD and Touch Sensor substantially improve ease of setup.
STICK:
Improved feel, adjustable length and tension.
Ni-MH BATTERY:
The 14SG is operated by a 6.0 V/1,800 mAh NiMH battery.
SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T14SG transmitter software files are released, the software can be updated by using an SD card update.
EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
CONTENTS
YOUR T14SG INCLUDES THE FOLLOWING COMPONENTS:
- T14SG Transmitter
Air Version
ratcheting
Helicopter Version
smooth
- R7008SB Receiver
- HT5F1800B NiMH Battery* and Charger
- Switch Harness
- Neck Strap
*NOTE: The battery in the T14SG transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:
2.4 GHz band
SYSTEM:
FASSTest14CH, FASSTest12CH, FASST MULT, FASST 7CH, S-FHSS, switchable
POWER SUPPLY:
6.0 V HT5F1800B NiMH battery
RECEIVER SPECS
R7008SB
SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in
WEIGHT:
10.9 g
0.38 oz
POWER REQUIREMENTS:
DC 3.7~7.4V
VOLTAGE RANGE:
DC 3.5~8.4V
Compatible receivers as of 29 June2022.
S-FHSS PROTOCOL
- R2008GS
- R2008SB
- R2106SB
- R2001SB
- R2000SBM
T-FHSS and T-FHSS Mono are NOT Suppported
FASST7 AND FASST MULTI
- R6004FF
- R6008HS
- R6014HS
- R6016HF
- R616FFM
- R617FS
- R6202SBW
- R6203SB
- R6208SB
- R6303SB
- R6303SBE
FASSTest12 and FASSTest18
- R7003SB
- R7006SB
- R7008SB
- R7108SB
- R7014SB
