Description

---

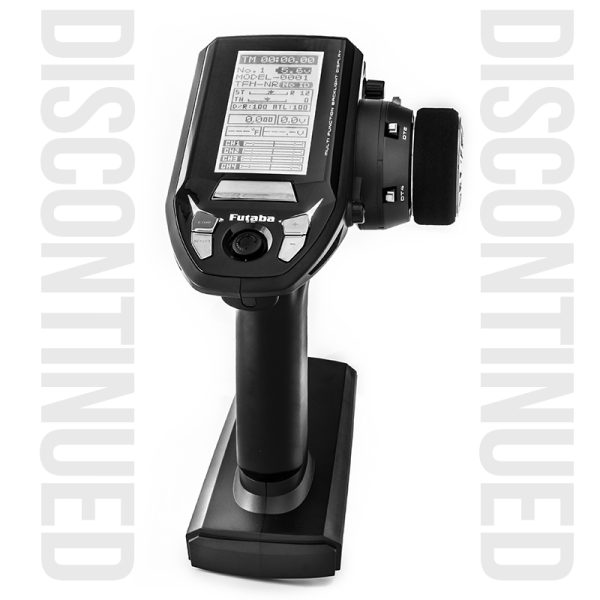

4PV Transmitter – 4-Channel Digital Proportional RC System

---

For Use with Surface Models (01004348-3)

---

FEATURES

TELEMETRY SYSTEM:
The T4PV transmitter has adopted the newly developed bidirectional communication system “T-FHSS”.

2.4 GHZ SS RADIO COMMUNICATION SYSTEM:
Frequency channel setting is unnecessary: Channel shifting takes place within the 2.4 GHz band automatically. This system minimizes the interference from other 2.4 GHz systems.

DISPLAY SWITCH:
Display switch allows function setup without transmitting.

MODEL MEMORY FOR 40 MODELS:
Model names can use up to 10 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.

4 AXIS JOG BUTTON:
The (JOG) button can be operated in 4 directions: up, down, left, and right.

ESC-LINK FUNCTION (MC-LINK):
This dedicated function allows you set up the Link software so that your T4PV can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC950CR, MC850C, MC851C, MC602C, MC402CR, etc.

S.BUS SERVO:
This is a special function that allows setting of the parameters of our S.Bus servo whose settings are changed by using PC Link software.

STEERING MIXING:
Smooth cornering is possible by independent left and right steering servo setting.

BRAKE MIXING FOR LARGE CARS (BRAKE):
Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.

GYRO MIXING (GYRO MIX):
The sensitivity of Futaba car rate gyros can be adjusted from the T4PV.

4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPE (4WS):
This function can be used with crawlers and other 4WS type vehicles.

DUAL ESCS MIXING FOR CRAWLERS CARS (DUAL ESC):
ESCs at the front and rear are controlled independently.

CPS-1 MIXING (CPS MIX):
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.

ANTI-SKID BRAKING SYSTEM (TH A.B.S):
This function applies the brakes so that the tires of gas powered cars, etc. do not lose their grip on the road even when braking at corners.

THROTTLE ACCELERATION (ACCEL):
Gas power cars have a time lag before the clutch and brakes become effective. The throttle acceleration function reduces this time lag.

THROTTLE SPEED (SPEED):
Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.

STEERING SPEED (SPEED):
When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.

RACING TIMER (TIMER):
The lap timer can record 100 lap times and total time. The timer can also be started automatically by trigger operation. The race time and audible alarm can be set. Re-/fueling time are indicated by an audible alarm. An up timer is also provided.

FUNCTION SELECT SWITCH (SWITCH)/DIAL FUNCTION (TRIM DIAL):
This assigns functions to 2 switches and dials (digital trim, digital dial). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.

TRIGGER POSITION CAN BE CHANGED:
The position of the throttle trigger can be moved forward and backward.

TENSION ADJUSTMENT FUNCTION:
The tension of the steering wheel and throttle trigger springs can be adjusted from the outside.

MECHANICAL ATL ADJUSTMENT:
Make this adjustment when you want to decrease the total travel of the brake (push) side of the throttle trigger.

---

CONTENTS

YOUR T4PV INCLUDES THE FOLLOWING COMPONENTS:

• -T4PV Transmitter
• -R304SB Receiver
• -Dry Battery Holder
• -Mini Screwdriver


---

TRANSMITTER SPECS

T-FHSS/S-FHSS SYSTEM, WHEEL TYPE, 4 CHANNELS

COMMUNICATION METHOD:
One-way operating system

MAXIMUM OPERATING RANGE:
100m (Optimum condition)

FOR SAFETY:
F/S, B-F/S, ID

TRANSMITTER FREQUENCY:
2.4 GHz band

RF POWER OUTPUT:
100mW EIRP

POWER REQUIREMENT:
(Dry Cell Battery) Penlight x 4 (6 V)

CURRENT DRAIN:
150 mA or less

TRANSMISSION ANTENNA:
1/2λ di-pole

SYSTEM COMPATIBILITY:
T-FHSS (Default): R304SB, R304SBE
S-FHSS (Change is possible): R2104GF, R204GF-E

---

RECEIVER SPECS

R304SB

T-FHSS

SIZE:
35.1 mm x 23.2 mm x 8.5 mm

WEIGHT:
6.6 g

OPERATING VOLTAGE:
DC 4.8V-7.4V

---
