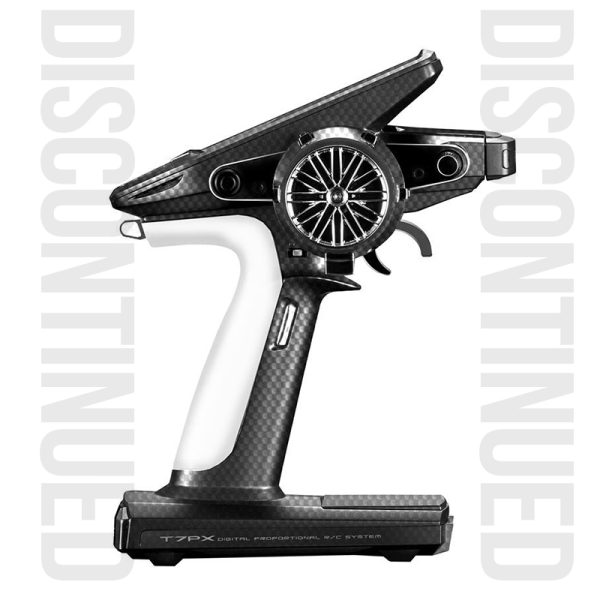

7PX Limited Edition

SKU: 01004385-3 Category: Tags: ,

This product has been discontinued. Please browse our store to find other great products that you might be interested in.

7PXR

Description

7PX Limited Edition (LE) Transmitter – Super Response Digital Proportional RC System


For Use with Surface Models (01004385-3)


FEATURES

LIMITED EDITION:
T7PX LE transmitters come with a unique four-digit serial number, identifying it’s limited quantity manufacturing, as only 2000 were made worldwide, as well as “7PX Limited Edition” decals.

BODY UPGRADES AND OPTIONS:
The T7PX LE comes with black and white interchangeable grips for style and comfort preference, a carbon-fiber appearance, a blue anodized aluminum trigger and hook installed and two alternate T7PX triggers, an aluminum steering house, an APA angle adapter, titanium and 7075 aluminum screws to decrease weight, a soft steering spring, and an optional carbon handle.

T-FHSS MINIZ SYSTEM:
By changing to the MINIZ system in the receiver setting menu, you can use Kyosho Mini-Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately.

FULL COLOR TOUCH SCREEN LCD:
T7PX LE has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

T-FHSS SR (SUPER RESPONSE) AND TELEMETRY T-FHSS:
In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super Response) system that increased processing speed to further improve response. (SR system does not support telemetry function.)

UPDATEABLE SOFTWARE:
Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.

MODEL MEMORY FOR 40 MODELS:
Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.

NFC COMMUNICATION:
It is possible to update the T7PX LE itself in the future by NFC communication.

INTEGRAL TYPE DIAL SWITCH:
A switch with both dial (DL1) and pus switch (PS6) functions.

BRAKE MIXING FOR LARGE CARS:
Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.

STEERING MIXING:
Smooth cornering is possible by independent left and right steering servo setting.

4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPE:
This function can be used with crawlers and other 4WS type vehicles.

DUAL ESCS MIXING FOR CRAWLERS CARS:
ESCs at the front and rear are controlled independently.

GYRO MIXING:
The sensitivity of Futaba car rate gyros can be adjusted from the T7PX LE.

TANK MIXING:
This function is intended for vehicles such as tanks.

CPS-1 MIXING:
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.

S.BUS SERVO:
This is a special function that allows setting of the parameters of our S.Bus servo whose settings are changed by using PC Link software.

MC-LINK:
This dedicated function allows you set up the Link software so that your T7PX LE can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc.

THROTTLE SPEED:
Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.

STEERING SPEED :
When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.

NON-TELEMETRY LED:
When the telemetry function is OFF to confirm that the telemetry function is not operating.

DIAL SELECT FUNCTION:
This function assigns functions to dials (digital trim, drip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.

SWITCH SELECT FUNCTION:
This function assigns functions to 5 switches. The operating directions can also be set.

WHEEL AND TRIGGER POSITION CAN BE CHANGED:
The wheel position can be offset by using an accessory APA wheel position offset adapter. The wheel angle can also be adjusted. The position of the throttle trigger can be moved forward and backward.

TRIGGER BRAKE LEVER REPLACEMENT:
The trigger brake lever is selected from a narrow nylon type and wide type.

TRIM/DIAL LOCK FUNCTIONS:
Lock functions which prohibit setting and operating by transmitter trim, and dials are provided.

LEFT-HANDED SUPPORT:
The left and right installation direction of the wheel section can be reversed.

VIBRATION BUILT INTO THE GRIP:
The vibration can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm. It sets it on each function screen.


CONTENTS

YOUR T7PX LE INCLUDES THE FOLLOWING COMPONENTS:

  • T7PX LE Transmitter
  • R334SBS-E Receiver
  • Decal Sheet
  • Carbon Carrying Handle
  • Dry Battery Holder
  • Wheel Offset Adapter
  • Wheel Adapter 32°
  • Large Diameter Steering Wheel (54 mm)
  • Trigger Brake Lever (Narrow Type)
  • Miniature Screwdriver
  • Screen Protector
  • 3 x Receiver Plugs

TRANSMITTER SPECS

WHEEL SYSTEM, 7 CHANNELS (S-FHSS SYSTEM), 4 CHANNELS WITH TFHSS-SR, T-FHSS, FASST SYSTEM

TRANSMITTING FREQUENCIES:
2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP

PROTOCOLS:
T-FHSS SR/T-FHSS/S-FHSS/FASST-C2

POWER REQUIREMENT:
Ni-MH – NT5F1800B (6 V)
LiFe – FT2F1700BV2 (6.6 V)

CURRENT DRAIN:
350 mA or less (When the T-FHSS, Vibration off, back lighting on)

TRANSMITTING ANTENNA:
1/2λ dipole

4.3 INCH BACKLIGHTED COLOR TFT LIQUID CRYSTAL TOUCH PANEL*
*When you turn on your 7PX LE, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.


RECEIVER SPECS

R334SBS-E

T-FHSS SR

SIZE:
33.9 mm x 22.3 mm x 11.3 mm
1.33 in x 0.88 in x 0.44 in

WEIGHT:
7.2 g
0.25 oz

OPERATING VOLTAGE:
DC 3.7V-7.4V


Additional information

Weight 64 oz
Dimensions 17 × 10 × 5 in
