S-AG300 (S.Bus2)

$79.99

In stock


SKU 01102353-3 Categories , , Tag


Share
Description

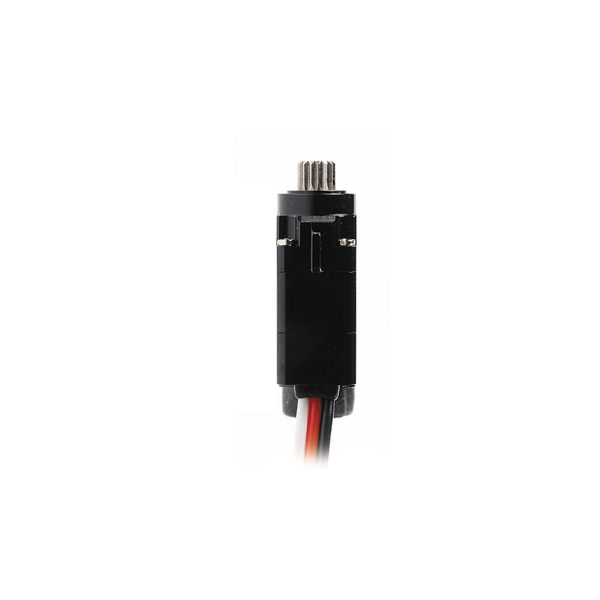

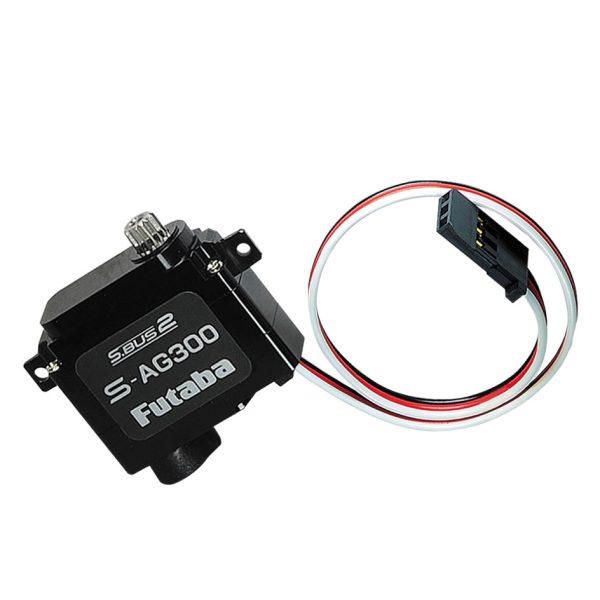

S-AG300 – S.Bus2 High-Voltage Narrow Airplane Servo


High Performance Ultra Micro Servo with (01102353-3)




FEATURES:
– For Glider/ F3K
– Programmable/HV Coreless Servo.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Metal Final Gear
– Upper/middle/bottom: Aluminum Case

SPEED:
0.130 sec/60°at 3.8V
0.065 sec/60° at 7.4V

TORQUE:
1.5 kgf/cm at 3.8V
20.8 ozf/in at 3.8V
2.5 kgf/cm at 7.4V
34.7 ozf/in at 7.4V

SIZE:
23.5 mm x 8.0 mm x 19.7 mm
0.93 in x 0.32 in x 0.78 in

WEIGHT:
10.8 g
0.38 oz

RATED VOLTAGE:
DC 4.8V-7.4V

OPERATING VOLTAGE:
DC 3.8-8.4V






Additional information
Weight 10.4 oz
Dimensions 3 × 2.5 × 1.5 in
Product

Servo

Hobby

Airplane

Servo Size

Standard

Features

S.Bus, S.Bus2, SR Mode (Super Response), Brushless, HV, Metal Case, Metal Gear
