Description

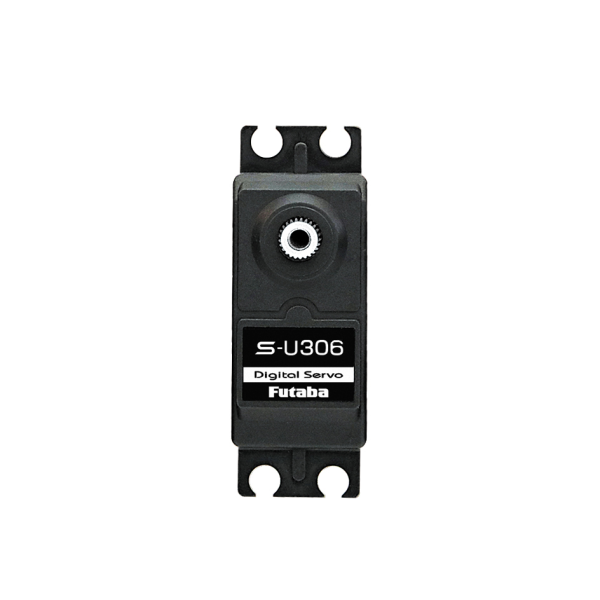

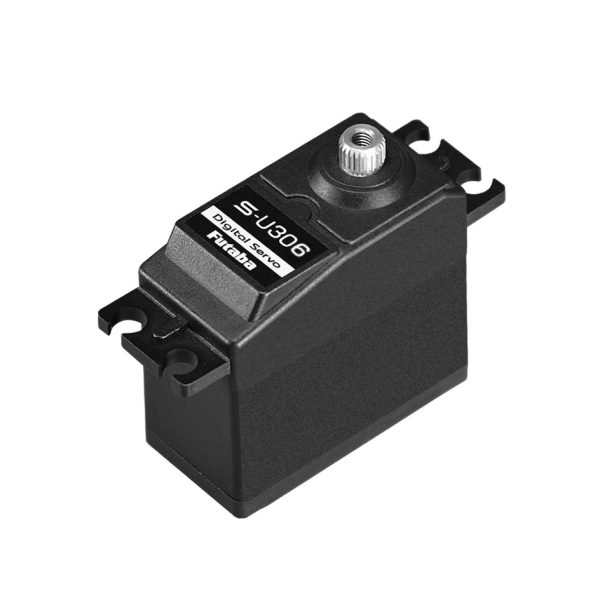

S-U306– Standard Digital Airplane/Car Servo (No S.BUS)

Heavy Duty Metal Gear Servo w/ traditional analog angle (01102396-3)

Input pulse 1220uS <—>1820uS

Output angle -60° <—-> +60°

S3305 replacement (01102253-3)

SPEED:
0.18 sec/60°at 6.0V
0.23 sec/60°at 4.8V

TORQUE:
8.9 kgf/cm at 6.0V
123.6 ozf/in at 6.0V

7.1 kgf/cm at 4.8V
98.6 ozf/in at 4.8V

SIZE:
40 mm x 20 mm x 38.1 mm
1.57 in x 0.79 in x 1.50 in

WEIGHT:
46.5 g
1.64 oz

NO DRY BATTERY USE

NO SBUS

DO NOT LEAVE SERVO STALLED

• Stall may cause printed circuit board to burn
