18SZ – 70th Anniversary
This product has been discontinued. Please browse our store to find other great products that you might be interested in.

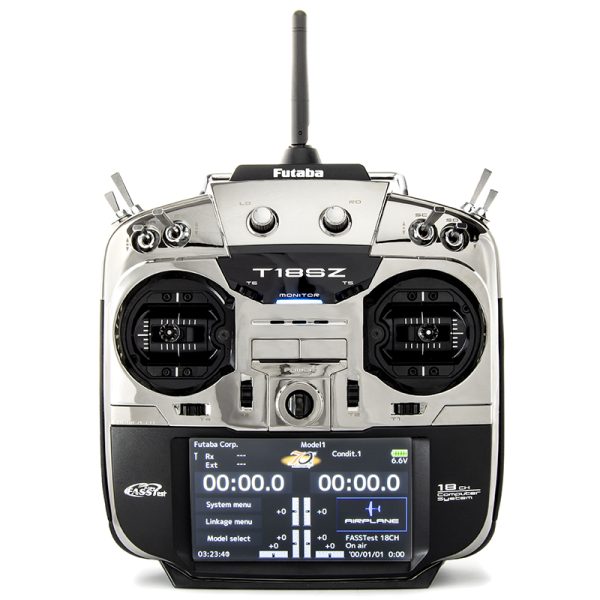

18SZ 70th Anniversary Transmitter – 18-Channel Digital Proportional RC System
2-Stick, 18-Channel, FASSTest 2.4 GHz System (01004357-3) (01004358-3)
The 18SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.
COLOR TOUCH SCREEN LCD:
T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.
SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.
YOUR T18SZ INCLUDES THE FOLLOWING COMPONENTS:
- T18SZ 70th Anniversary Transmitter
– Air Version includes ratcheting throttle
– Helicopter Version includes smooth throttle
- Chrome Finish

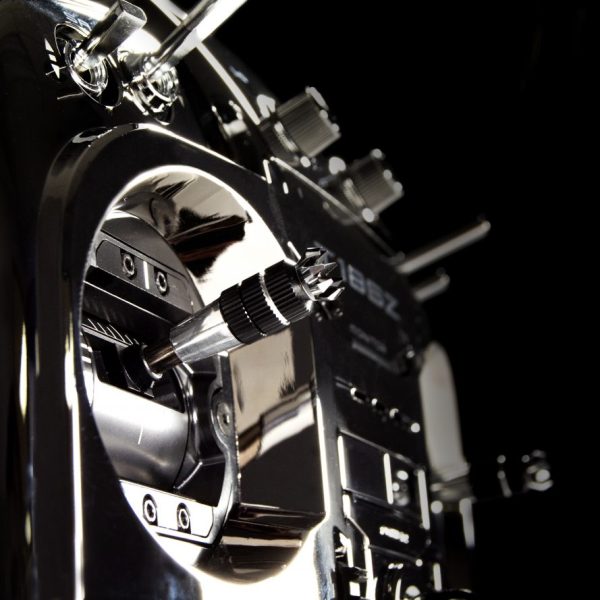

- Aluminum Gimbals
- R7008SB Receiver
- FT2F2100BV2 LiFe Battery* and Charger
- Switch Harness
- Mini Driver
- Transmitter Case
*NOTE: The battery in the T18SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
2.4 GHz band
FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable
6.6 V FT2F2100BV2 LiFe battery
RF POWER OUTPUT:
24.9 mm x 47.3 mm x 14.3 mm
0.98 in x 1.86 in x 0.56 in
|Dimensions||17 × 7 × 14 in|
Know Your Power – Free Voltage Cable
