Description

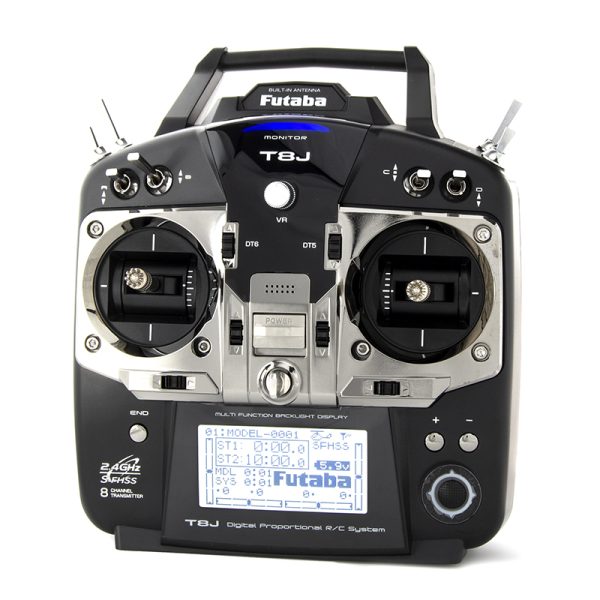

8J Transmitter – 8-Channel Digital Proportional RC System
2-Stick, 8-Channel, S-FHSS System, Built-in Dual Antenna Diversity (01004368-3) (01004369-3)
FEATURES
QUICK, EASY SETUP:
Large graphic liquid-crystal display panel with three buttons, an easy set up turn-and-press jog-key for quick, easy setup.
MULTIPLE TYPES:
All transmitters include both aircraft types with specialized programming for each.
RAPID TRIM ADJUSTMENT:
Four electronic trim levers for rapid yet precise trim adjustment – no remembering to “store trims” between models, and no more “bumped trims” during transport.
MULTIPLE SETUPS:
Idle-down (acro), thr-cut (acro/heli) (engine shut off), setups to allow precise engine/motor control for taxi and landings.
UNIQUE MODEL MEMORY SYSTEM:
20 complete model memories.
IMPROVED STICK DESIGN:
New stick design with improved feel, adjustable length, and tension.
DUAL RATES:
Two rates available by setting dual rates to 3-position switches.
ASSIGNABLE SWITCHES AND DIAL:
Eight switches and dial; completely assignable in most applications.
TRAINER SYSTEM:
Trainer system includes the “functional” setting, which allows the student to use the 8J’s mixing helicopter, and other programming functions even with a 4-channel buddy box. Optional trainer cord required.
MEMORY STORAGE:
Permanent memory storage via EEPROM with no backup battery to service or have fail.
Air Version
Transmitter features airplane-friendly switch layout, with the trainer switch at the left hand (Mode 2), and a notched throttle to minimize throttle changes with rudder input. Default to Acro model type.
Helicopter Version
Transmitter features helicopter-friendly switch layout, with idle-up and throttle hold switches at the left hand, and a smooth, ratchet-less (unsprung) throttle for perfect hovering. Defaults to Heli (H-1 swashplate type) model type.
MULTIPLE MODES:
Change transmitter mode from mode 2 to modes 1, 3, or 4.
INTERNAL ANTENNA:
The built-in antenna which puts the antenna within the transmitter case.
DIVERSITY SYSTEM:
The diversity system which has 2 antennas inside of the transmitter.
CONTENTS
YOUR T8J INCLUDES THE FOLLOWING COMPONENTS:
- T8J Transmitter
– Air Version includes ratcheting throttle
– Helicopter Version includes smooth throttle
- R2008SB Receiver
- Switch Harness
- Neck Strap
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:
2.4 GHz band
POWER SUPPLY:
4-AA 1.2 V Dry Cell Batteries; 4.8 V total (sold separately)
Alternate options:
HT5F1800B NiMH battery
FT2F2100B Li-Fe battery

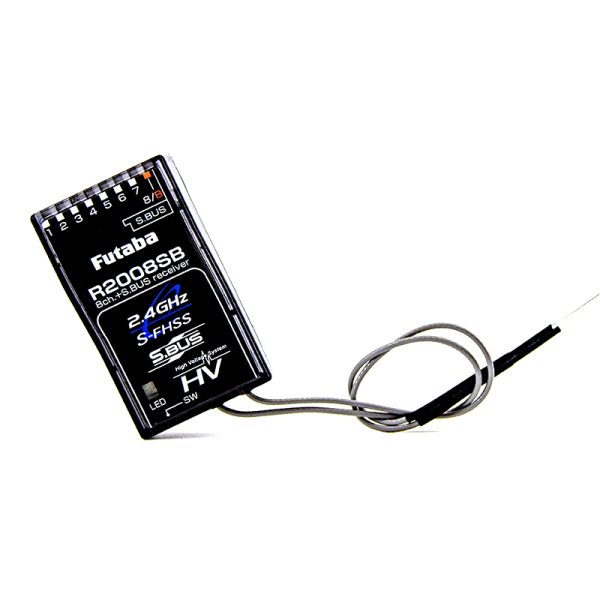

RECEIVER SPECS
R2008SB
S-FHSS/FHSS (Auto Detection)
SIZE:
24.9 x 42.8 x 14.0 mm
0.98 x 1.69 x 0.55 in
WEIGHT:
9.5 g
0.34 oz
OPERATING VOLTAGE:
DC 4.8~7.4V
