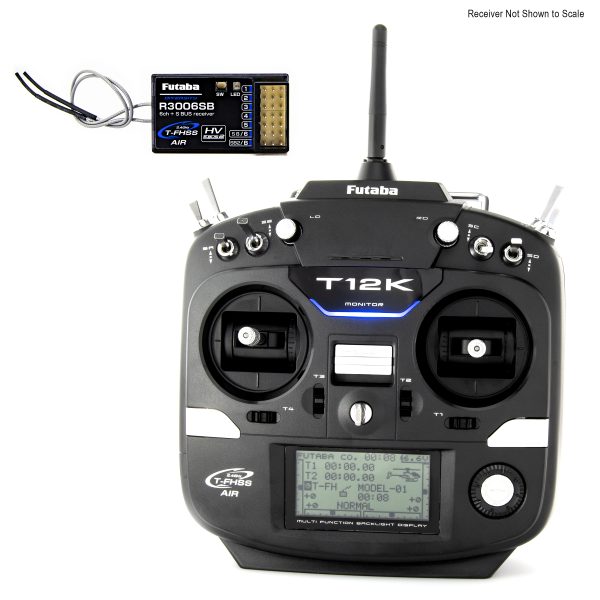

12K (Air w/R3008SB) + R3006SB
This product is specifically for the bundle of the Air version of one 12K transmitter (which includes one R3008SB receiver) and one R3006SB receiver.
12K Transmitter – 14-Channel Digital Proportional RC System
2-Stick, 14-Channel, T-FHSS Air 2.4 GHz System (01004343-3)
T-FHSS AIR SYSTEM:
The 12K transmitter has adopted the bidirectional communication system “T-FHSS Air”. Data from the receiver can be checked in your transmitter. T-FHSS Air is a maximum 14 channels (linear 12 channels + switch 2 channels) 2.4 GHz dedicated system.
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
Six swash types are available for helicopters. Six types of main wings and three types of tail wings are available for airplanes, multicopters and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
The 12K is operated by a 6.0 V/1,800 mAh NiMH battery.
MICRO SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to a micro SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T12K transmitter software files are released, the software can be updated by using a micro SD card update.
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a push dial.
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
YOUR T12K INCLUDES THE FOLLOWING COMPONENTS:
- -T12K Transmitter (Air Version includes ratcheting throttle, Helicopter/FPV Versions includes smooth throttle)
- -R3008SB Receiver
- -HT5F1800B NiMH Battery and Charger
*NOTE: The battery in the T12K transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
2.4 GHz band
T-FHSS Air, S-FHSS, switchable
6.0 V HT5F1800B NiMH battery
RF POWER OUTPUT:
INCLUDED RECEIVER SPECS
24.9 mm x 47.3 mm x 14.3 mm
R3006SB– T-FHSS Telemetry System 6-Channel + S.Bus Receiver
Dual Diversity For Aircraft Models (01102306-3)
25 mm x 43.1 mm x 8.8 mm
0.98 in x 1.7 in x 0.35 in
|Dimensions||17 × 10 × 5 in|
|# of Channels||
